Durotriges

Tunnel: Beaminster, Horn Hill

Proposed in the late 1820's the building of this improvement to the Bridport Second Division Turnpike Trust. Construction commenced in 1830 and was completed by 29 July 1832 and is still in regular use.

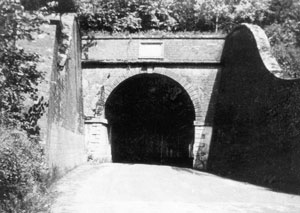

Horn Hill Tunnel south portal
Tunnel Portal
J Childs

Trade must have been the driving force for the construction of the longest road tunnel in Britain in the 1830s. Since 1824 the improvement of Bridport harbour (West Bay) provided an effective trading route for the import and export of materials. Unfortunately the more direct access for industries in south Somerset involved the exhausting 500ft climb by horse drawn wagons over Horn Hill near Beaminster.
In the 1820s Mr Giles RUSSELL, a solicitor from Beaminster, proposed a solution by building a new turnpike road, including a tunnel that would reduce the climb by 100ft. Plans were prepared in 1827, depicted the proposed route and local land ownership, funds raised and submission for the required parliamentary Act prepared.
Construction commenced in 1831 and the 115yds long, 20ft wide, tunnel was completed with a grand opening ceremony on 29 June 1832.

LOCATION

WGS84 50-49-33.59N 002-45-25.82W
OSGB ST(3)46766(1)03213: 50k Sheet 193

Note: Certain browser and security restrictions may not permit the following location display.

The old road before the tunnel.

Cronology

1820's Proposed by Mr Giles RUSSELL
1827 Plans prepared
1829 Application to Parliament
1830 Apr 12 First sod ceremony
1832 Jun 29 Opening ceremony
1832 Jul 27 Toll gates installed on turnpike
1881 Jan 1 Toll gates removed
1963 Tunnel House demolished
1968 Tunnel cement lined

Tunnel

The 1832 road improvement to the Bridport Second Division Turnpike Trust.

Horn Hill South Portal with emerging waggon

Waggon

By the south portal.

1827 proposal map

1827 Map

The proposed tunnel and road route. The road north of the tunnel was shown to climb to the old South Dibberford farm access road. It was built further west near the farmhouse on a more level route.

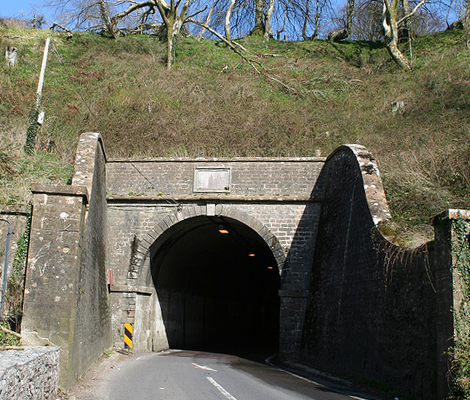

Horn Hill tunnel, South Portal

South Portal

This portal is approached at an angle.

Horn Hill Tunnel, North Portal

North Portal

A more gentle approach.

Horn Hill Tunnel 1902 map

1902 Map

The new road through the tunnel runs north to south whilst the old road ran west to east.

Toll House

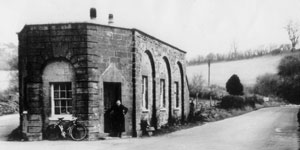

Tunnel House toll house

Tunnel House

The toll house built in 1832 would have had a toll gate across the road to the right leading to the Tunnel. Laterly the occupier was employed to keep the oil lamps lit until they were converted to electricity. This house was demolished in 1963.

toll keepers

1841. Elizabeth MUNDAY, together with her son, William and daughter, Elizabeth.
1851. Elizabeth TUCK and her brother, John.
1861. Jacob and Elizabeth SIBLEY and daughter Harriot.

Broadwindsor Lane

Broadwindsor Lane

The road over the tunnel once the main Crewkerne to Beaminster road.

Tunnel plaque

Plaques

At each portal (south shown) plaques commemorate those involved in the tunnel building.

BEAMINSTER

Beaminster, a market-town and parish, in the union and hundred of Beaminster, Bridport division of Dorset, 17½ miles (W. N. W.) from Dorchester, and 137¼ (W. S. W.) from London; containing, with the tything of Langdon, 3270 inhabitants (1848).

The town is pleasantly situated on the river Birt, which is formed by the union of several small springs that rise in the immediate vicinity; the houses are in general modern and well built, and the inhabitants are amply supplied with water. The manufacture of woollen-cloth, which formerly flourished here, is at present on the decline, and that of sail-cloth is now the principal source of employment; there is also a pottery for the coarser kinds of earthenware. The market, granted to William Ewel, prebendary of Sarum, in the 12th of Edward I., is on Thursday; and a fair is held on Sept. 19th, for cattle. [Lewis]

Bibliography

Good, Ronald. “The Old Roads of Dorset”, Bournemouth, Horrace G. Commin Ltd, 1966
Eedle, Marie de G., “Horn Hill Tunnel”, Bridport, Eedle, 1994
Lewis, Samuel., “Topographic Dictionary of England ”, Great Briain, S Lewis & Co, 1848
Viner, David. "Discover Dorset - Roads, Tracks & Turnpikes", Wimborne, Dovecote Press, 2007
Hine, David. "History of Beaminster", Taunton, The Wessex Press, 1914. [CD Books. GB1125, 2004]
